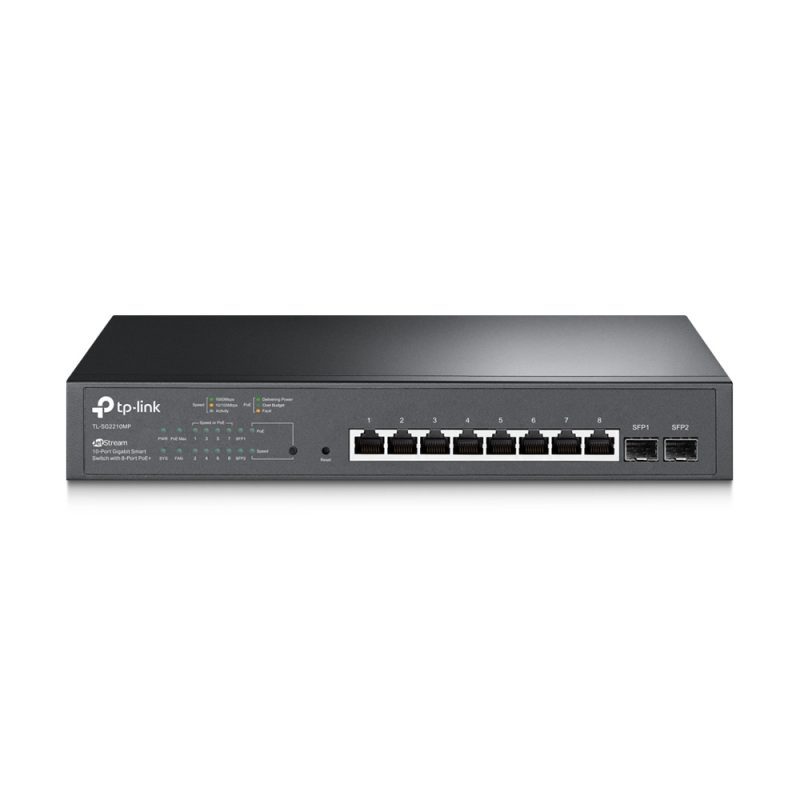

TP-Link – TL-SG2210MP — JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+


Realize More Possibilities with Omada

  • 150 W PoE Budget: 8× 802.3at/af-compliant PoE+ ports with a total power supply of 150 W*.
  • Full Gigabit Ports: 8× gigabit PoE+ ports and 2× gigabit SFP Slots provide high-speed connections.
  • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
  • Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
  • Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication, and more.
  • Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.

Software Defined Networking (SDN) with Cloud Access

Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

Category: Tag:

HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
Interface • 8× 10/100/1000 Mbps RJ45 Ports, all supporting PoE+ (Auto-Negotiation/Auto MDI/MDIX)
• 2× 100/1000 Mbps SFP Slots
Network Media • 10BASE-T: UTP/STP category 3, 4, 5 cable (maximum 100m)
• 100BASE-TX/1000Base-T: UTP/STP category 5, 5e or above cable (maximum 100m)
• 100BASE-FX: MMF, SMF
• 1000BASE-X: MMF, SMF
Fan Quantity 1

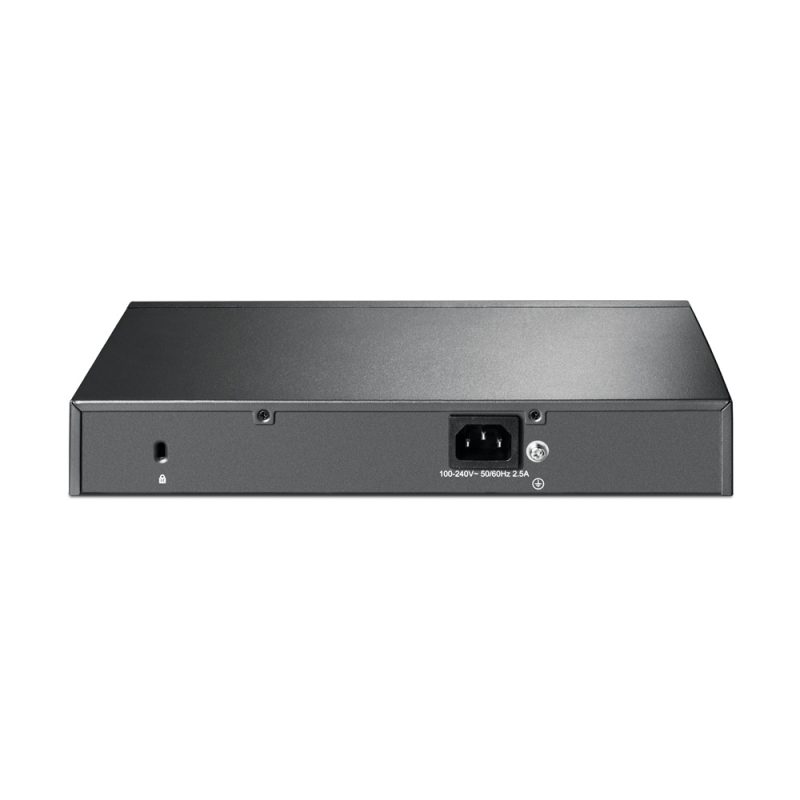

Physical Security Lock Yes
PoE+ Ports(RJ45) • Standard: 802.3at/af compliant
• PoE+ Ports: 8 Ports
• Power Supply: 150 W
Dimensions ( W x D x H ) 11.6 x 7.1 x 1.7 in (294 x 180 x 44 mm)
Mounting Rack Mountable
Max Power Consumption • 12.2 W (110 V / 60 Hz with no PD connected)
• 173.9 W (110 V / 60 Hz with 150 W PD connected)
Max Heat Dissipation • 41.63 BTU/h (with no PD connected)
• 539.35 BTU/h (with 150 W PD connected)
PERFORMANCE
Switching Capacity 20 Gbps
Packet Forwarding Rate 14.9 Mpps
MAC Address Table 8K
Packet Buffer Memory 4.1 Mbit
Jumbo Frame 9 KB
SOFTWARE FEATURES
Quality of Service • 802.1p CoS/ DSCP priority
• 8 priority queues
• Priority Schedule Mode
– SP (Strict Priority)
– WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
– Port/Flow based Rating Limit
• Smoother Performance
• Actions for flows
– Mirror(to supported interface)
– Redirect(to supported interface)
– Rate Limit
– QoS Remark
• Storm Control
– Multiple Control Modes(kbps/ratio/pps)
– Broadcast/Multicast/Unknown-Unicast Control
L2 and L2+ Features • DHCP Relay
– DHCP VLAN Relay
• DHCP L2 Relay
• Link Aggregation
– Static link aggregation
– 802.3ad LACP
– Up to 8 aggregation groups and up to 8 ports
per group
• Spanning Tree Protocol
– 802.1D STP
– 802.1w RSTP
– 802.1s MSTP
– STP Security: TC Protect, BPDU Filter/Protect,
Root Protect
• Loopback Detection
• Flow Control
– 802.3x Flow Control
• Mirroring
– Port Mirroring
– CPU Mirroring
– One-to-One
– Many-to-One
– Flow-Based
– Ingress/Egress/Both
• Device Link Detect Protocol (DLDP)
• 802.1ab LLDP/ LLDP-MED
L2 Features • Link Aggregation
– static link aggregation
– Up to 8 aggregation groups and up to 8 ports per group
– 802.3ad LACP
• Spanning Tree Protocol
– 802.1D STP
– 802.1w RSTP
– 802.1s MSTP
– STP Security: Loop back detection, TC Protect, BPDU Filter/Protect, Root Protect
• Loopback Detection
• Flow Control
– 802.3x Flow Control
• Mirroring
– Port Mirroring
– One-to-One
– Many-to-One
– Flow-Based
– Ingress/Egress/Both
– CPU Mirroring
• Device Link Detect Protocol(DLDP)
L2 Multicast • 512 IPv4,IPv6 shared multicast groups
• IGMP Snooping
– IGMP v1/v2/v3 Snooping
– Fast Leave
– IGMP Snooping Querier
– IGMP Authentication
– Static Group Config
• MLD Snooping
– MLD v1/v2 Snooping
– Fast Leave
– MLD Snooping Querier
– Static Group Config
• Multicast VLAN Registration
• Multicast Filtering
IPv6 Support • IPv6 Dual IPv4/IPv6
• Multicast Listener Discovery(MLD) Snooping
• IPv6 neighbor discovery (ND)
• Path maximum transmission unit (MTU) discovery
• Internet Control Message Protocol (ICMP) version 6
• TCPv6/UDPv6
• IPv6 applications
– DHCPv6 Client
– Ping6
– Tracert6
– Telnet(v6)
– IPv6 SNMP
– IPv6 SSH
– IPv6 SSL
– Http/Https
– IPv6 TFTP
VLAN • VLAN Group
– Max. 4K VLAN Groups
• 802.1Q tag VLAN
• MAC VLAN
• Protocol VLAN
• GVRP
• Voice VLAN
Access Control List • Support up to 230 entries
• Time-Range
– Time Slice
– Week Time-Range
– Absolute Time-Range
– Holiday
• Time-based ACL
• MAC ACL
– Source MAC
– Destination MAC
– VLAN ID
– User Priority
– Ether Type
• IP ACL
– Source IP
– Destination IP
– IP Protocol
– TCP Flag
– TCP/UDP Source Port
– TCP/UDP Destination Port
– DSCP/IP TOS
• IPv6 ACL
• Combined ACL
• Rule Operation
– Permit/Deny
• Policy Action
– Mirror
– Rate Limit
– Redirect
– QoS Remark
• ACL Rules Binding
– Port Binding
– VLAN Binding
Security • AAA
• 802.1X
– Port based authentication
– MAC(Host) based authentication
– Authentication Method includes PAP/EAP-MD5/EAP-TLS/EAP-TTLS/EAP-PEAP
– MAB
– Guest VLAN
– Support Radius authentication and accountability
• IP/IPv6-MAC Binding
– 512 Binding Entries
– DHCP Snooping
– DHCPv6 Snooping
– ARP Inspection
– ND Detection
• IP Source Gurad
– 253 Entries
– Source IP+Source MAC
• IPv6 Source Gurad
– 183 Entries
– Source IPv6 Address+Source MAC
• DoS Defend
• Static/Dynamic/Permanent Port Security
– Up to 64 MAC addresses per port
• Broadcast/Multicast/Unicast Storm Control
– kbps/ratio/pps control mode
• Port Isolation
• Secure web management through HTTPS with SSLv3/TLS1.2
• Secure Command Line Interface (CLI) management with SSHv1/SSHv2
• IP/Port/MAC based access control
MIBs • MIB II (RFC1213)
• Interface MIB (RFC2233)
• Ethernet Interface MIB (RFC1643)
• Bridge MIB (RFC1493)
• P/Q-Bridge MIB (RFC2674)
• RMON MIB (RFC2819)
• RMON2 MIB (RFC2021)
• Radius Accounting Client MIB (RFC2620)
• Radius Authentication Client MIB (RFC2618)
• Remote Ping, Traceroute MIB (RFC2925)
• Support TP-Link private MIBs
MANAGEMENT
Omada App Yes
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Management Features • Web-based GUI and CLI management
• SNMPv1/v2c/v3
• SNMP Trap/Inform
• RMON (1,2,3,9 groups)
• SDM Template
• DHCP/BOOTP Client
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• EEE
• System Log
• 802.1ab LLDP/ LLDP-MED
OTHERS
Certification CE, FCC, RoHS
Package Contents • TL-SG2210MP
• Power Cord
• Installation Guide
• Rackmount Kit
• Rubber Feet
System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10, MAC® OS, NetWare®, UNIX® or Linux.
Environment • Operating Temperature: 0–50 ℃ (32–122 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
