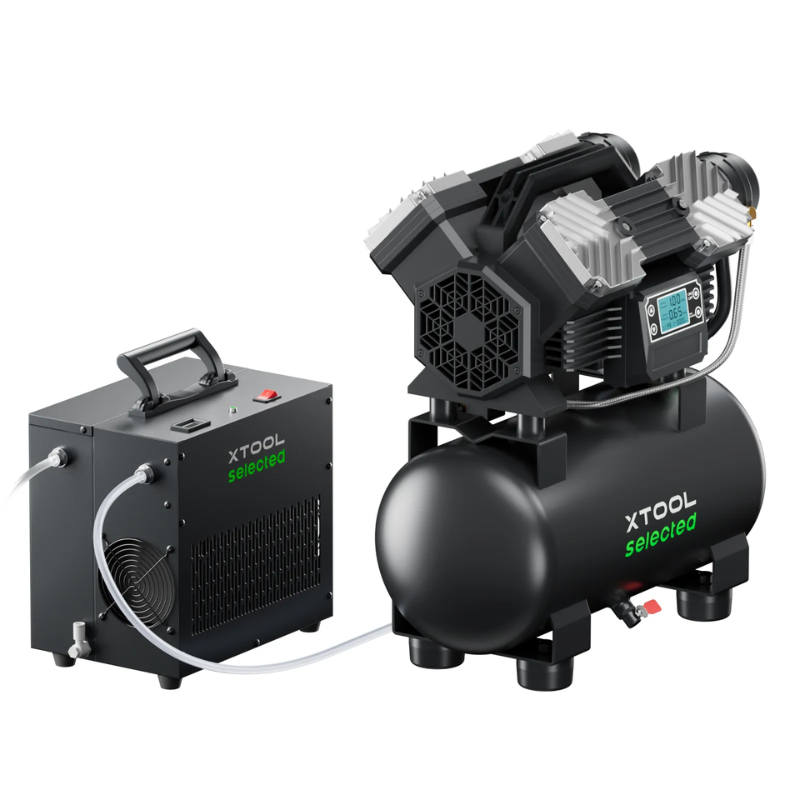

xTool Selected Air Compressor & Air Dryer
Available on backorder
Clean, Dry, Consistent Air for High-Performance Metal Cutting
The xTool Selected Air Compressor & Air Dryer is an integrated compressed-air solution designed for xTool MetalFab metal-cutting applications. By combining a high-performance air compressor with a multi-stage air-drying and filtration system, it provides clean, dry, and stable air to support consistent cutting performance.
Price range: $1,402.44 through $2,648.88
Key Features
1.Powerful & Stable Air Supply
The compressor delivers up to 145 PSI (1.0 MPa) maximum pressure, with a working pressure range of 87–114 PSI (0.6–0.79 MPa). Its 20L tank and 2200W motor provide a stable air supply for continuous metal-cutting operations.
The compressor can recover from 0 to 145 PSI in approximately 45 seconds, helping minimize downtime between cutting cycles.
2. HyperPure™ Air Filtration & Drying
Clean, dry air is essential for consistent metal cutting. The integrated air dryer uses a multi-stage filtration system to reduce moisture, oil, rust, and dust from the compressed air.
The system provides:
-
- 99% moisture drying
- 99.999% oil/rust removal
- 36–50°F (2–10°C) dew point
- Up to 0.01 ppm oil and dust filtration specifications as stated by xTool
3. Designed for Gas-Efficient Metal Cutting

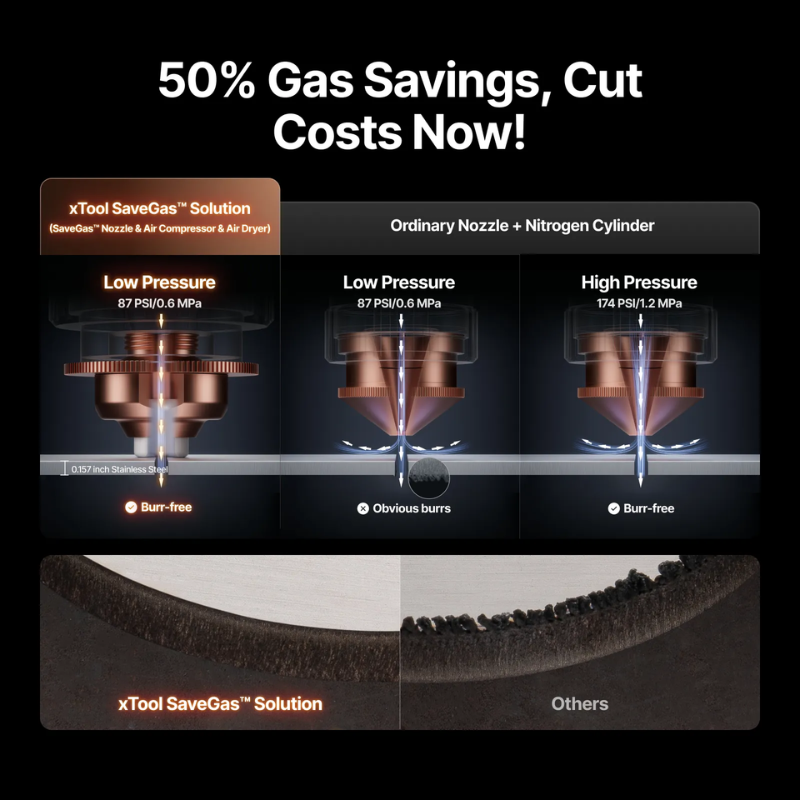

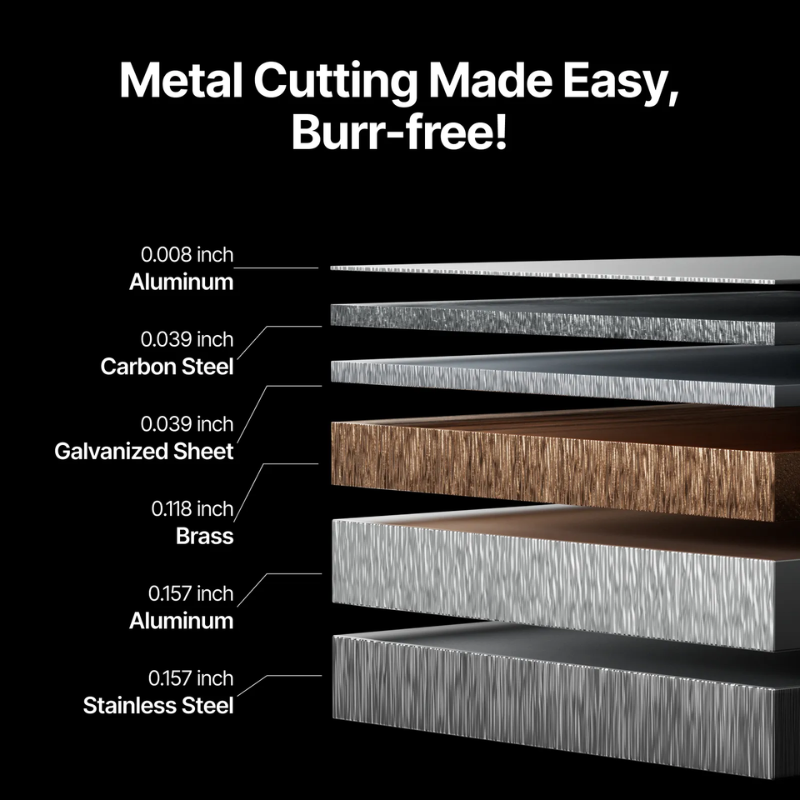

When used with the xTool SaveGas™ Nozzle, Air Compressor, and Air Dryer, the system can support burr-free cutting of materials such as 4 mm stainless steel, 4 mm aluminum, and 3 mm brass at 87 PSI, according to xTool’s published testing and product specifications.
4. Reduce Dependence on Gas Cylinders
The SaveGas™ solution is designed to use compressed air instead of continuously purchasing nitrogen or other gas cylinders for compatible applications. xTool estimates potential savings of over $20,000 per year compared with gas-cylinder use under its stated calculation assumptions. Actual savings will vary depending on usage, local gas prices, operating hours, and other conditions.
5. Compact Space-Saving Design
The system is designed to provide powerful compressed-air performance without the footprint of larger industrial air systems. The overall solution occupies approximately 0.066 m³, making it suitable for workshops and production environments where space is limited.
6. Built for Reliable Operation
The xTool Air Compressor and Air Dryer are designed to operate in temperatures from -10°C to 40°C and are rated by xTool for up to 2,400 hours of reliable operation under the specified conditions.
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Variation | Air Compressor+Air Dryer, Air Dryer |
xTool Selected Air Compressor
| Specification | Details |
|---|---|
| Maximum Air Pressure | 145 PSI (1.0 MPa) |
| Working Air Pressure | 87–114 PSI (0.6–0.79 MPa) |
| Maximum Air Flow | 12.4 SCFM / 350 L/min |
| Tank Capacity | 5.3 gal / 20 L |
| Rated Power | 3.0 HP / 2200 W |
| Recovery Time | Approx. 45 seconds from 0–145 PSI |
| Dimensions | 18.11 × 20.87 × 10.63 in (460 × 530 × 270 mm) |
| Weight | 35.27 lbs (16 kg) |
| Operating Voltage | 220 V |
| Pipe Diameter | 0.39 in (10 mm) |
| Working Temperature | -10°C to 40°C |

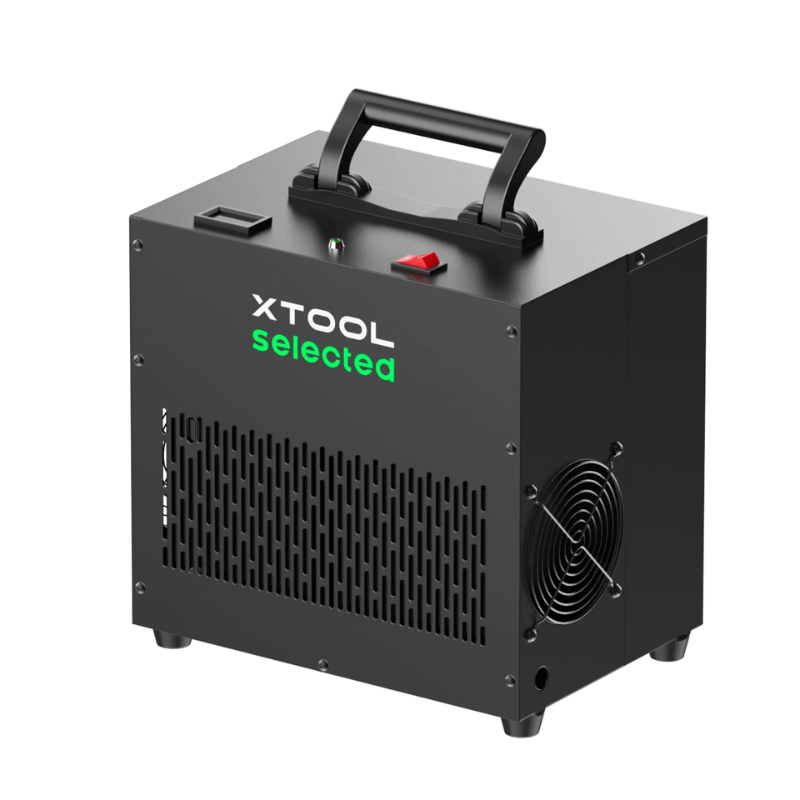

xTool Selected Air Dryer
| Specification | Details |
|---|---|
| Moisture Drying | 99% |
| Oil/Rust Removal | 99.999% |
| Maximum Allowable Air Flow | 14.1 CFM / 400 L/min |
| Maximum Allowable Air Pressure | 181 PSI / 1.25 MPa |
| Dew Point | 36–50°F (2–10°C) |
| Air Inlet Temperature | ≤113°F (45°C) |
| Rated Power | 0.51 HP / 380 W |
| Dimensions | 15.83 × 13.98 × 8.94 in (402 × 355 × 227 mm) |
| Weight | 23.81 lbs (10.8 kg) |
| Pipe Diameter | 0.39 in (10 mm) |
| Working Temperature | -10°C to 40°C |
