xTool P3 Intelligent Automatic Conveyor Feeder
Availability:
Available on backorder

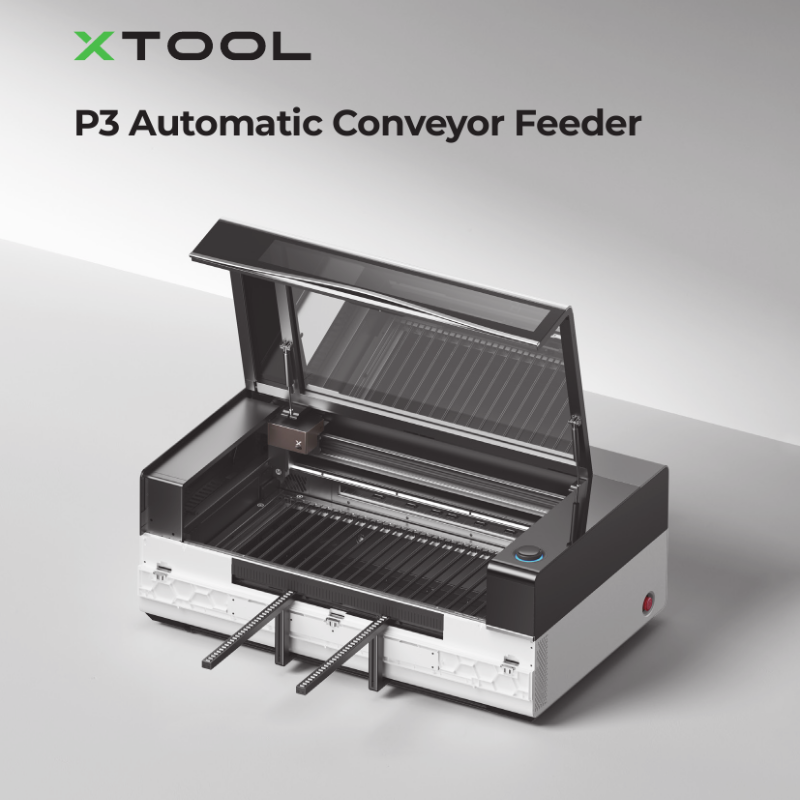

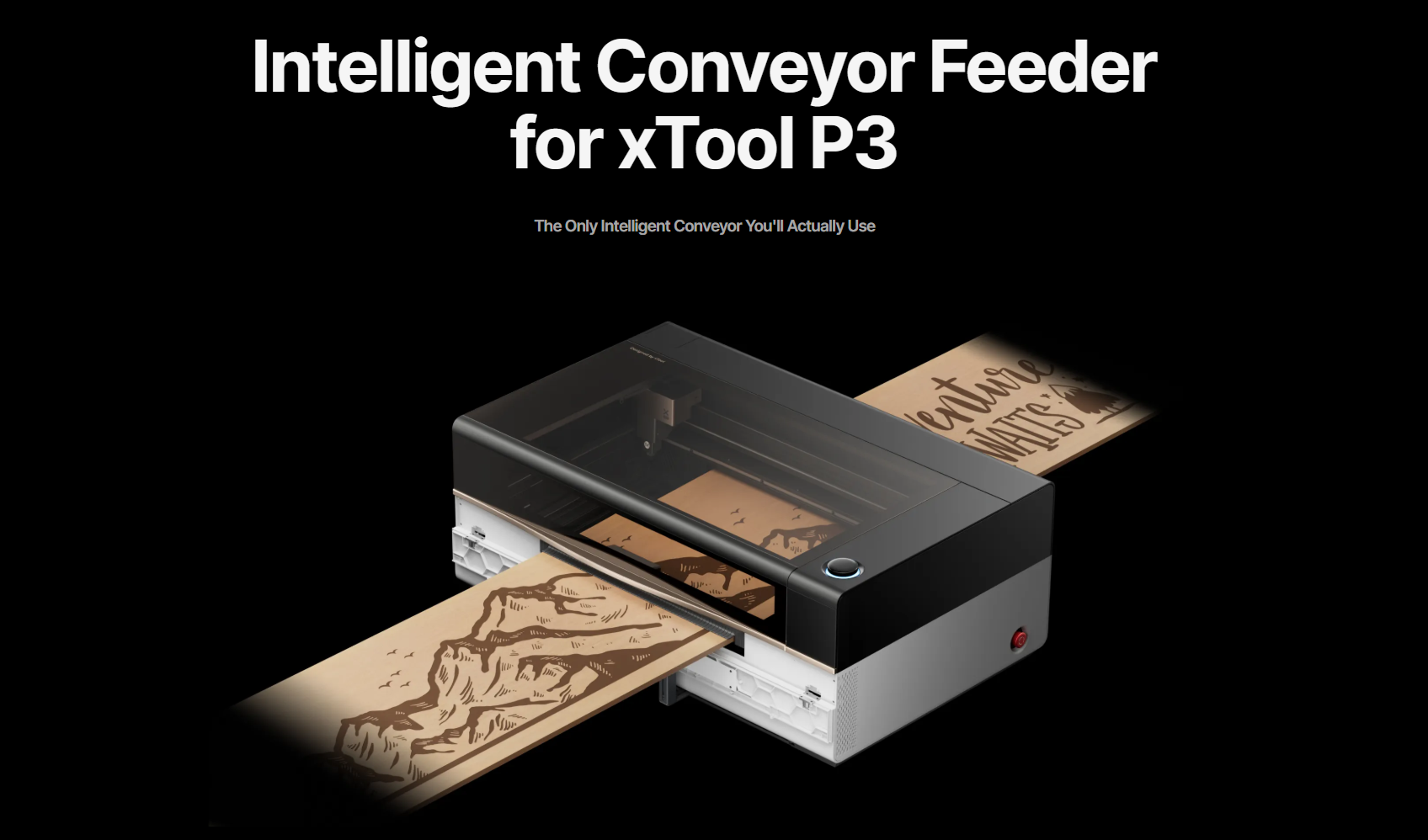

The xTool P3 Intelligent Automatic Conveyor Feeder is an advanced pass-through feeding system designed exclusively for the xTool P3 80W CO₂ Laser Cutter. It automates material feeding, clamping, alignment, and positioning, enabling continuous processing of oversized materials and high-volume batch production. Featuring AI Seamless Tiling Preview, Auto Clamp, Auto Homing, and 3-axis (X+Y+U) motion control, it significantly reduces manual setup time while increasing productivity.
Price range: $250.00 through $1,006.00

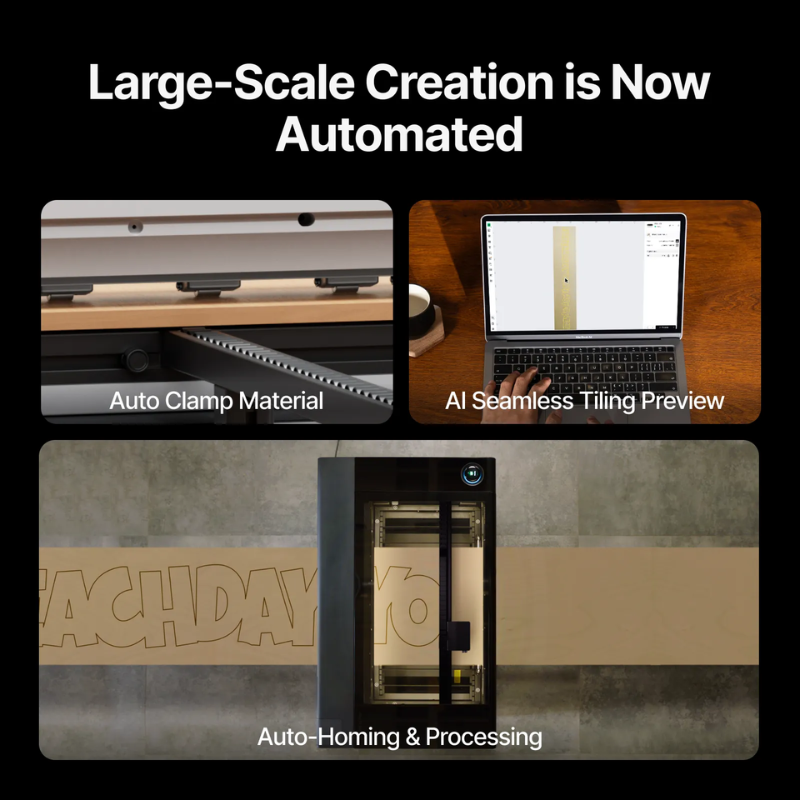

Key Features

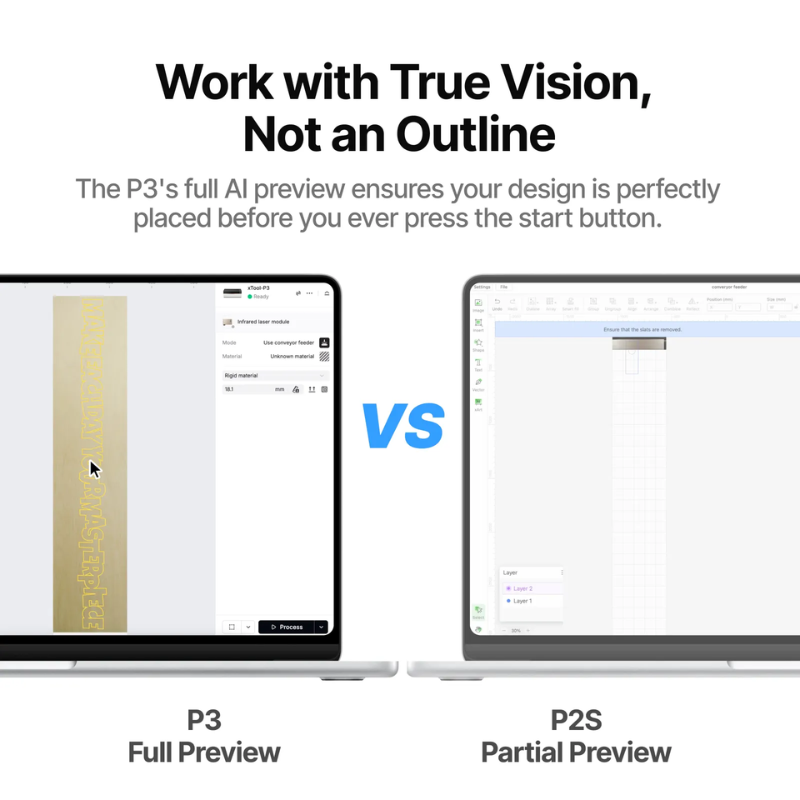

- AI Seamless Tiling Preview
- Uses the P3’s high-resolution camera and AI stitching to generate a complete preview of long materials for accurate positioning.

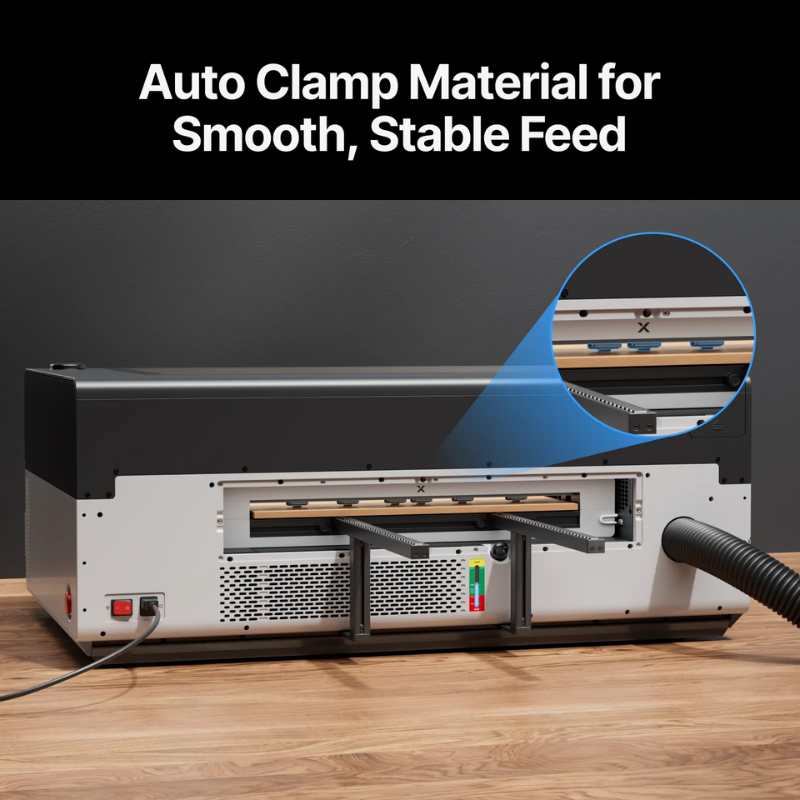

- Automatic Material Clamping
- Intelligent rollers automatically adjust pressure based on material thickness for stable feeding.
- Auto Homing & Processing
- Automatically feeds materials to the correct starting position with minimal user intervention.
- Continuous Pass-Through Processing
- Supports virtually unlimited material length when paired with additional conveyor rails.

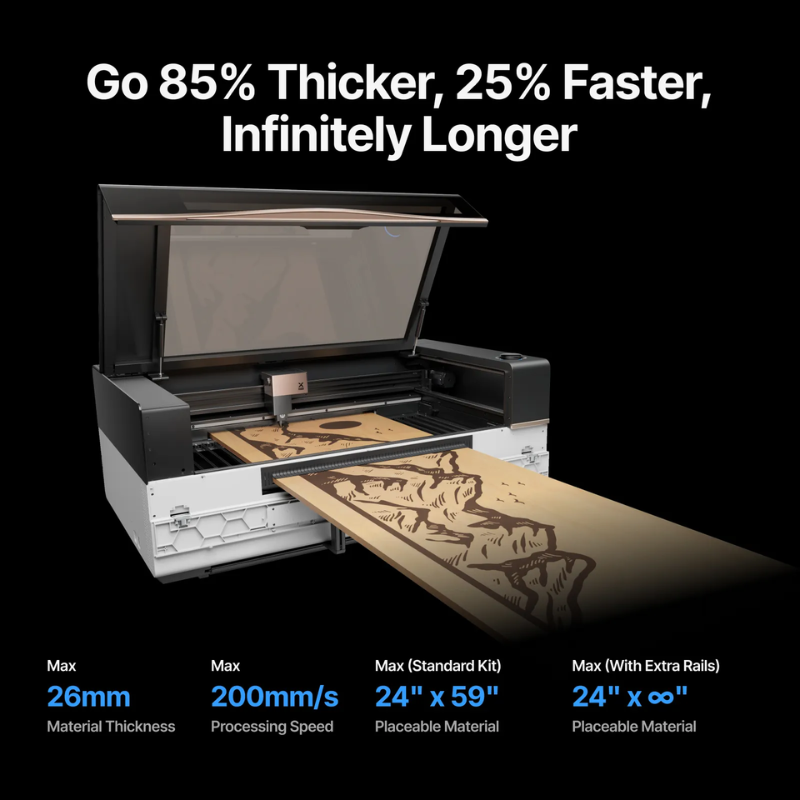

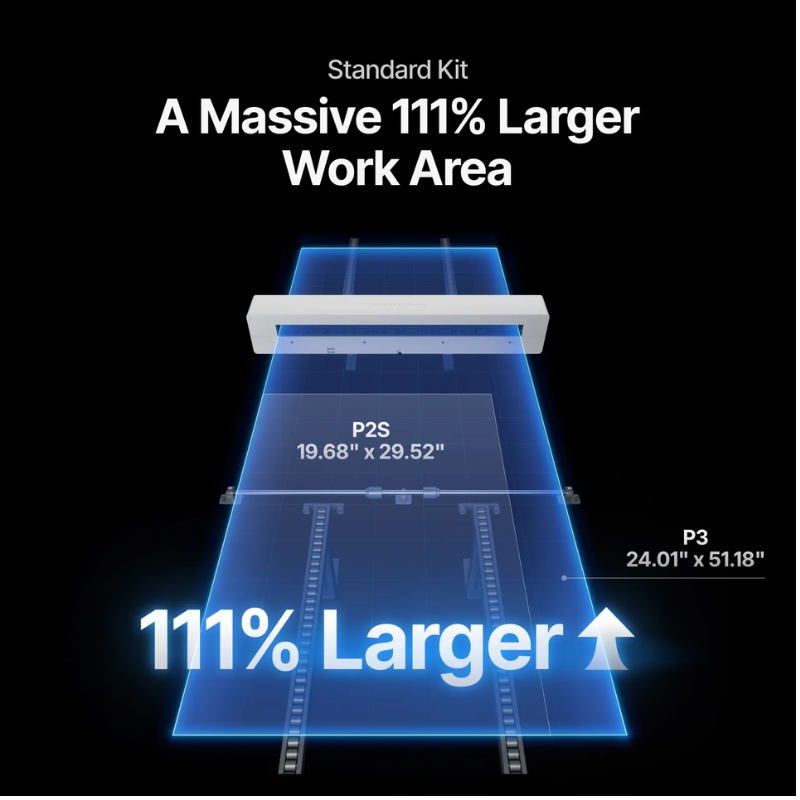

- Large Processing Capacity
- Standard kit accommodates materials up to 610 × 1,500 mm (24 × 59 in).
- Expandable with additional rails for even longer materials.
- Supports Thicker Materials
- Handles wood up to 26 mm thick and acrylic up to 20 mm thick.
- High-Speed Operation
- Maximum processing speed of 200 mm/s (160 mm/s under heavy loads).
Typical Applications
- Large signage
- Furniture panels
- Long wooden boards
- Acrylic panels
- Batch production
- Personalized products
- Long engraving projects
- Educational and makerspace production
- Small business manufacturing
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Variant | Standard 59" Conveyor Feeder, 27" Conveyor Rail |
| Specification | Details |
|---|---|
| Compatibility | xTool P3 |
| Motion System | 3-Axis (X + Y + U) |
| Maximum Processing Width | 610 mm (24.01″) |
| Maximum Processing Length | Unlimited (with conveyor rails) |
| Standard Material Length | 1,500 mm (59.05″) |
| Maximum Material Thickness | 26 mm (wood), 20 mm (acrylic) |
| Minimum Material Width | 101.6 mm (4″) |
| Maximum Material Weight | 16 kg |
| Maximum Processing Speed | 200 mm/s (160 mm/s under heavy loads) |
| Conveyor Dimensions | 760 × 100 × 114 mm |
| Conveyor Weight | 8.73 kg |
