xTool MetalFab Accessories – Complete Cutting, Welding & Cleaning Solutions

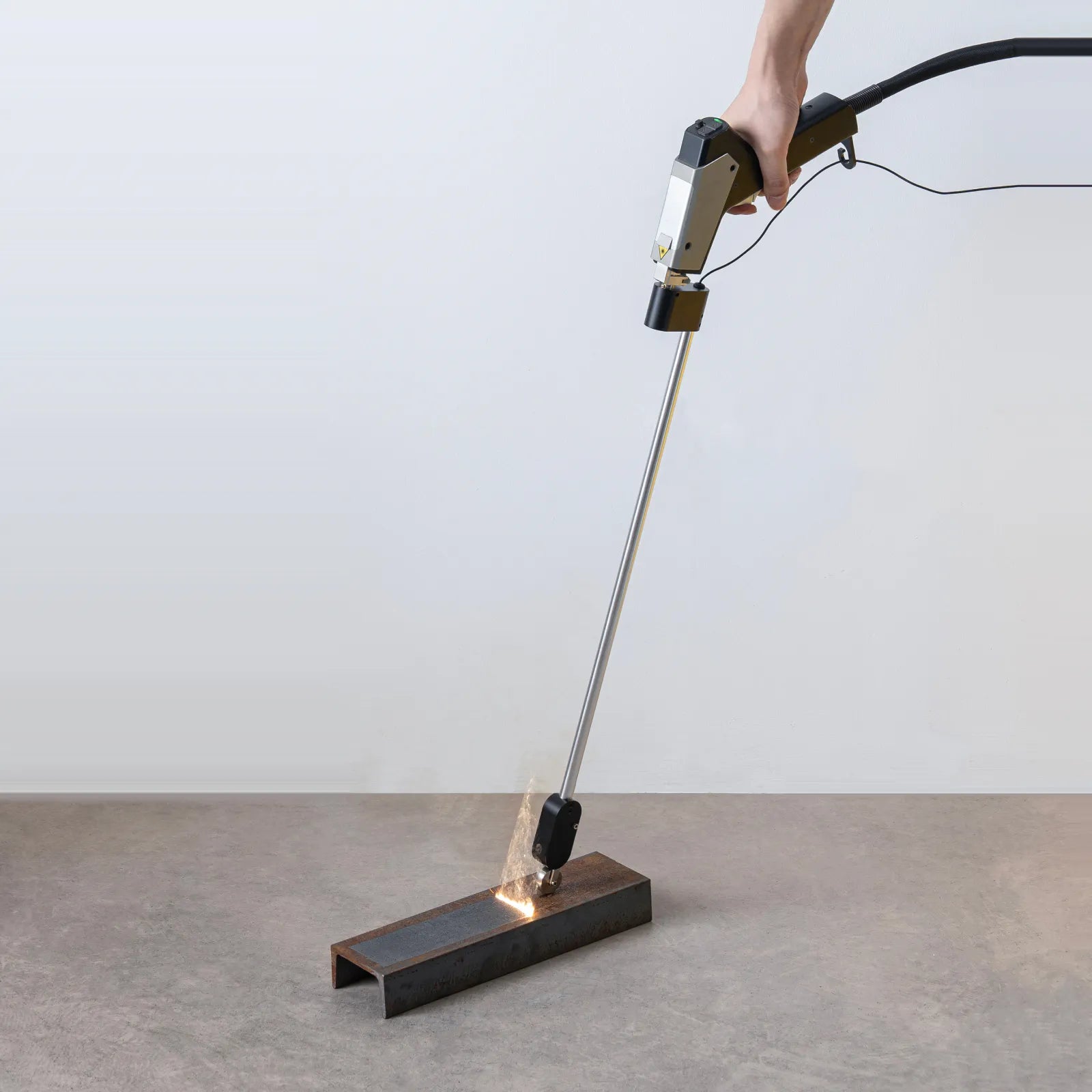

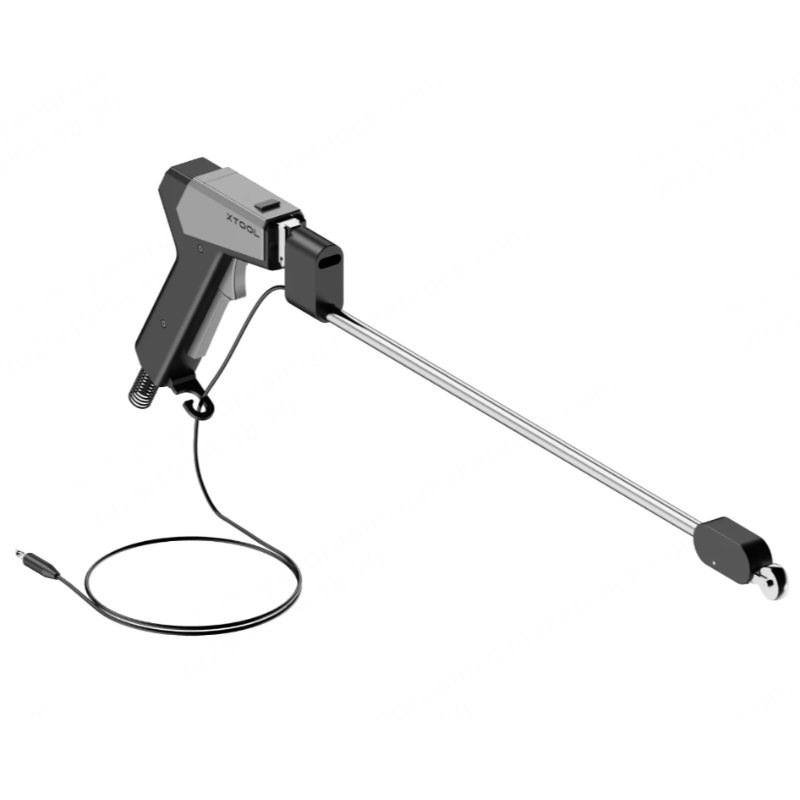

xTool MetalFab MaxClean™ 45mm Laser Cleaning Accessory

The xTool MetalFab MaxClean™ 45mm Laser Cleaning Accessory is designed for efficient laser cleaning applications, including removing rust and paint from metal surfaces.
With a 45 mm cleaning width, MaxClean is designed to cover a wider area in a single pass compared with narrower cleaning widths. xTool states that the accessory is compatible with the 800W and 1200W xTool MetalFab laser welder.

Key Features
45 mm cleaning width
Designed for removing rust and paint
Helps restore and reuse metal surfaces

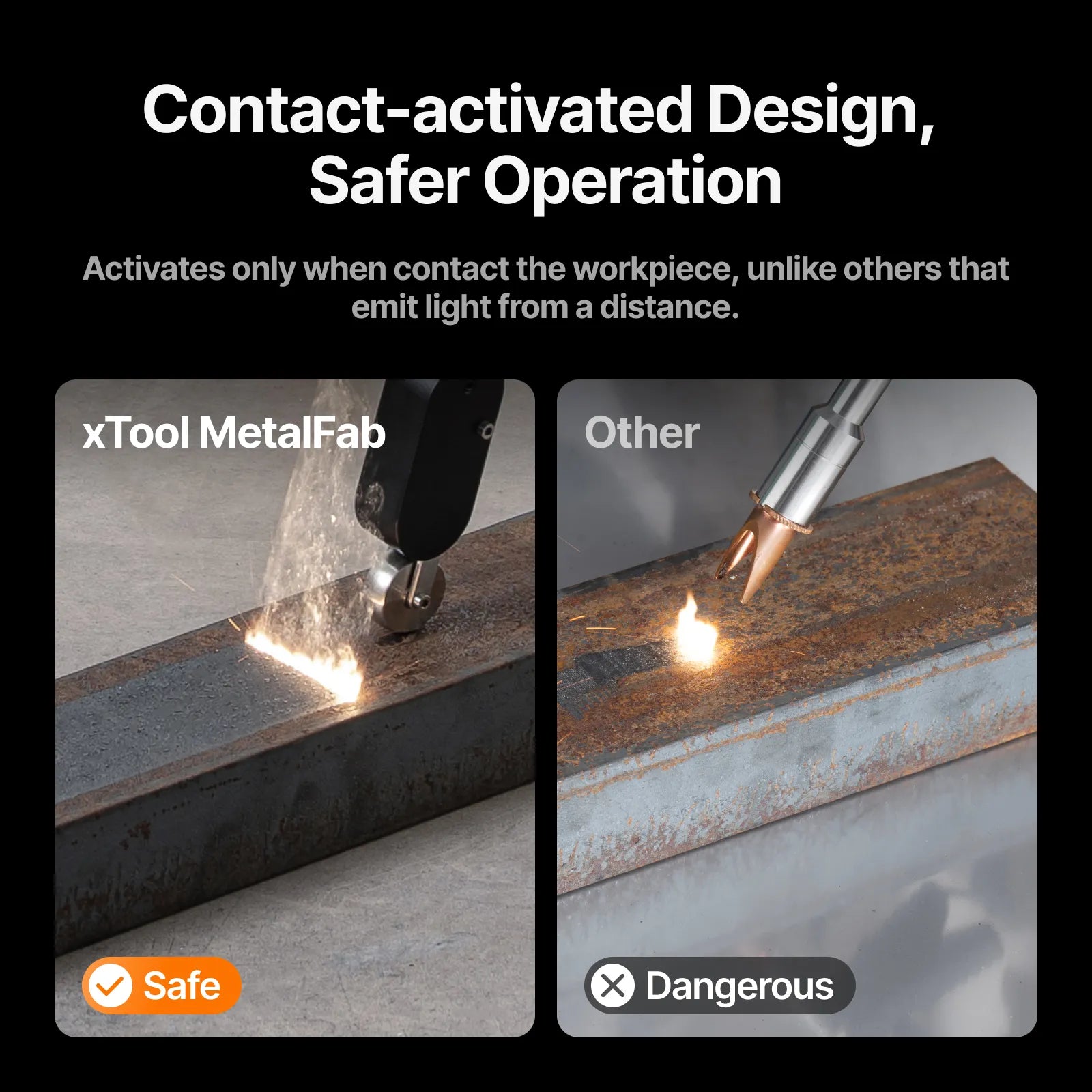

Contact-activated operation designed for enhanced safety
Compatible with xTool MetalFab 800W/1200W laser welder

Important Cleaning Note

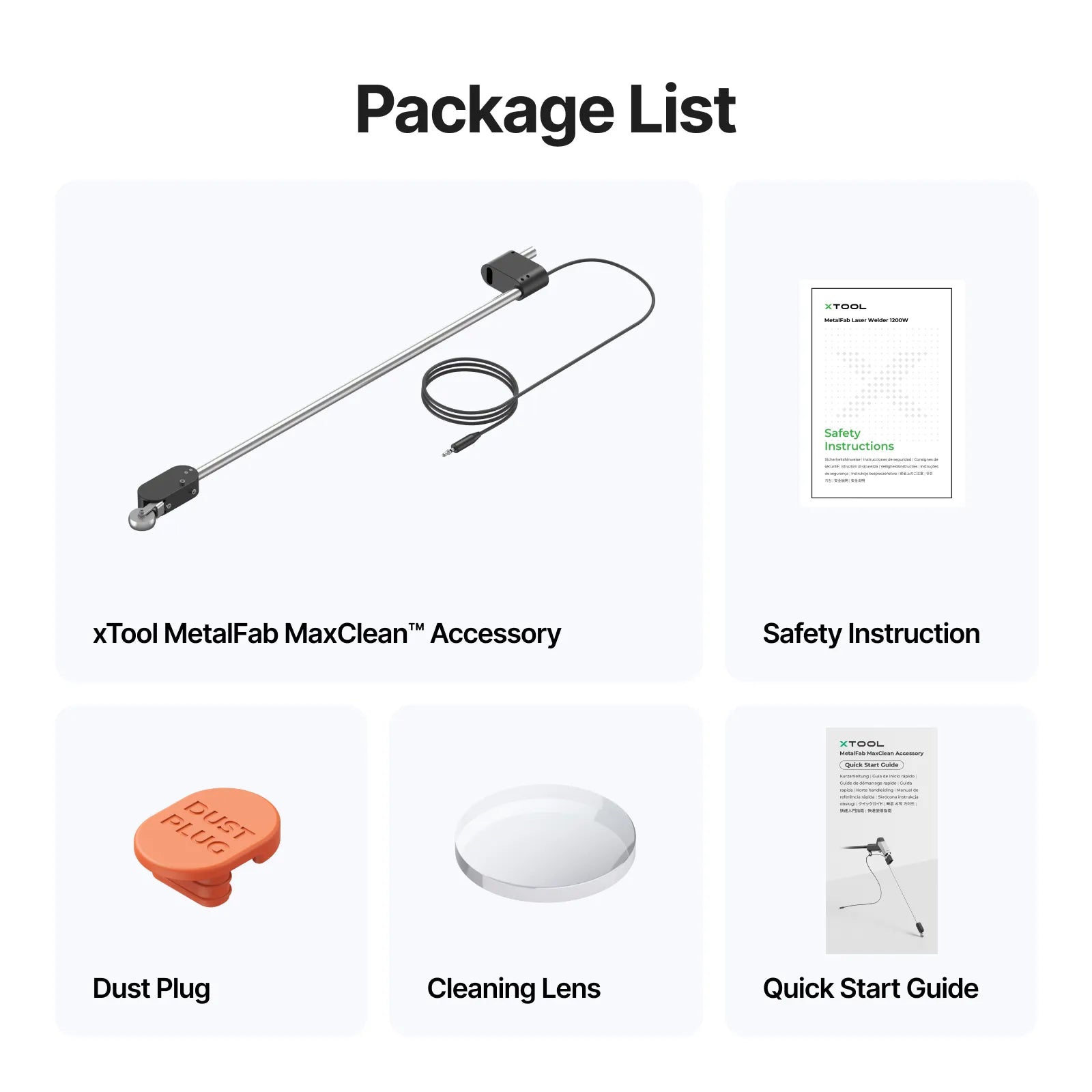

The MaxClean accessory requires its dedicated cleaning lens. After cleaning, the cleaning lens must be replaced with the appropriate protective lens before welding or cutting. Using the cleaning lens for welding or cutting may risk equipment damage.

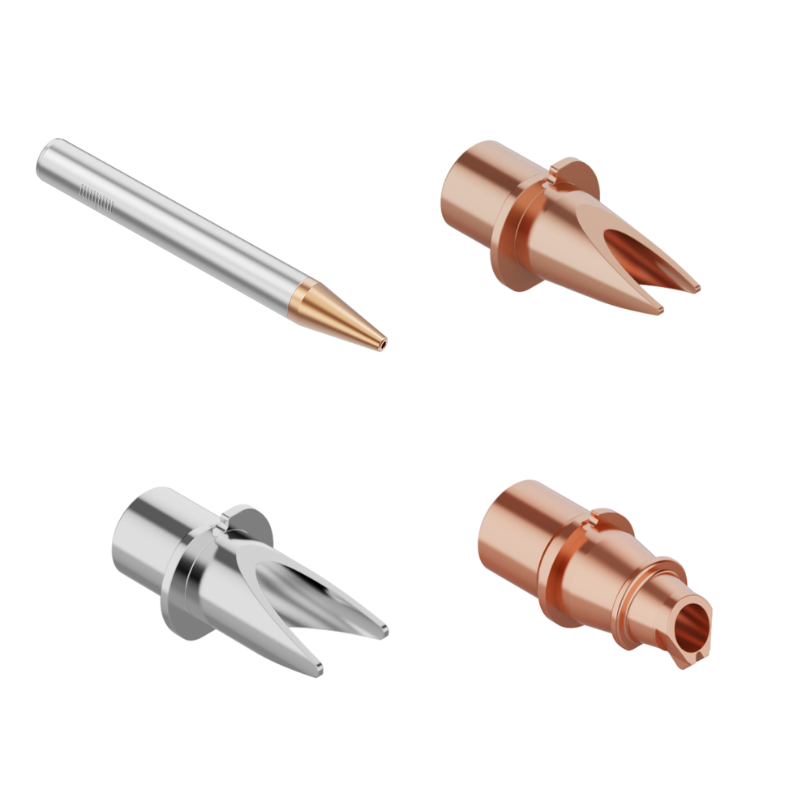

xTool MetalFab Welding Nozzle Set

The xTool MetalFab Welding Nozzle Set provides replacement components for welding, handheld cutting, and cleaning applications.
The set includes:

• Wired welding nozzle
• Wireless welding nozzle
• Handheld cutting tip
• Handheld cleaning nozzle

It is designed for laser welding, cleaning, and handheld cutting applications. xTool notes that customers should confirm their welder’s structure version before purchasing.

Note: This is a spare accessory set; the MetalFab laser welder package already includes a welding nozzle set.

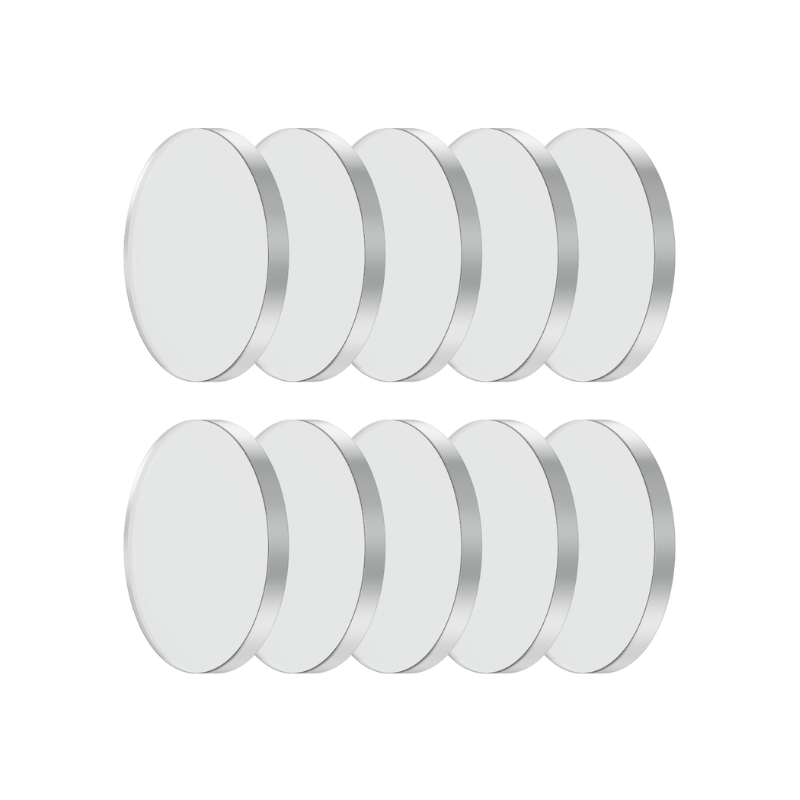

xTool MetalFab Protection Lens Set  10pcs

Protect your welding gun’s optical system with a set of 10 replacement protective lenses.
The protective lens helps protect the laser optics during MetalFab welding operations. xTool recommends checking, cleaning, or replacing the protective lens after approximately 3–6 days of continuous use, depending on operating conditions.

Key Features

• 10 protective lenses
• Designed for the xTool MetalFab welding gun
• Convenient replacement supply
• Helps support routine maintenance and operation

Note: This is a spare set; the MetalFab laser welder package already includes protective lenses.

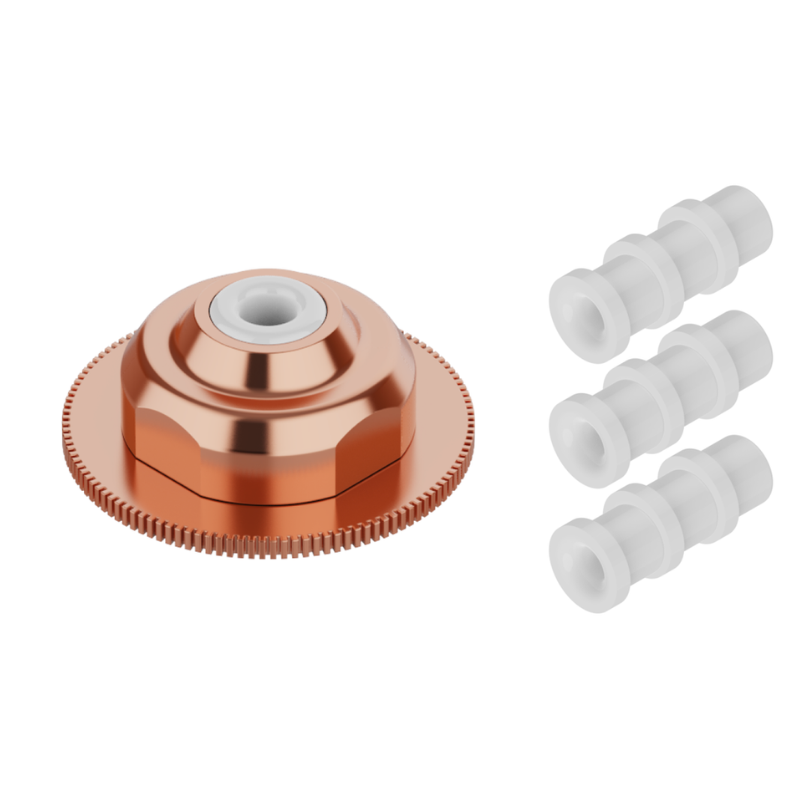

xTool MetalFab SaveGas™ Cutting Nozzle Set

The SaveGas™ Cutting Nozzle, also referred to as a telescopic cutting nozzle, is designed for cutting thicker materials while using compressed air at relatively low pressure.
The set includes:

• 1 SaveGas™ cutting nozzle
• 10 replacement ceramic rings

xTool states that the nozzle can cut materials such as 4 mm stainless steel, 4 mm aluminum, and 3 mm brass at 87 PSI / 0.6 MPa under its specified testing conditions.

Key Features
Telescopic/contact cutting design
Designed for gas-efficient cutting
10 replacement ceramic rings included
Suitable for thicker stainless steel, aluminum, and brass

Important Application Note

The SaveGas™ nozzle has a minimum recommended pattern size of 2.5 mm. Because it uses contact cutting, it can leave scratches on the metal surface and may require subsequent finishing. For ultra-precise cuts without surface contact, xTool recommends the ordinary nozzle instead.

For carbon steel or galvanized sheets over 2 mm, xTool recommends using the double-layer cutting nozzle with an extension tube and oxygen.

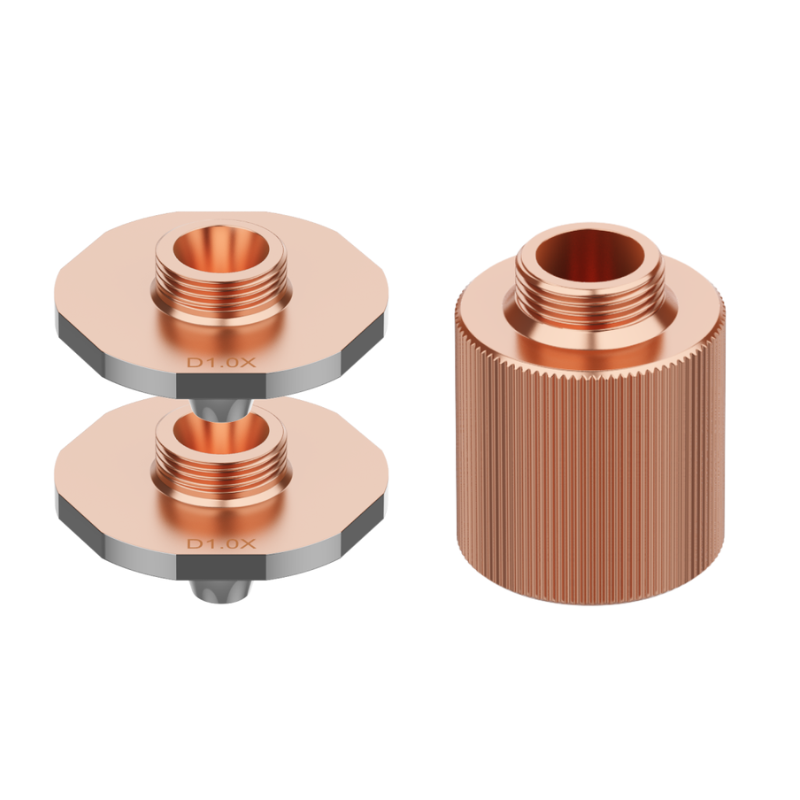

xTool MetalFab Double-Layer Cutting Nozzle Set

Designed for thicker carbon steel and galvanized sheet, the Double-Layer Cutting Nozzle Set provides an alternative cutting configuration for specific CNC cutting applications.
The set includes:

• 1 × 1.0 mm double-layer nozzle
• 1 × 1.2 mm double-layer nozzle
• 1 × 20 mm focus extension tube

For sheets below 8 mm, xTool specifies the 1.0 mm nozzle; for sheets 8 mm and above, the 1.2 mm nozzle is required.

Recommended Application

• Carbon steel ≥2 mm
• Galvanized sheet ≥2 mm
• Cutting with oxygen

xTool specifies an oxygen pressure of 0.06–0.07 MPa for cutting carbon steel and galvanized sheets over 2 mm.

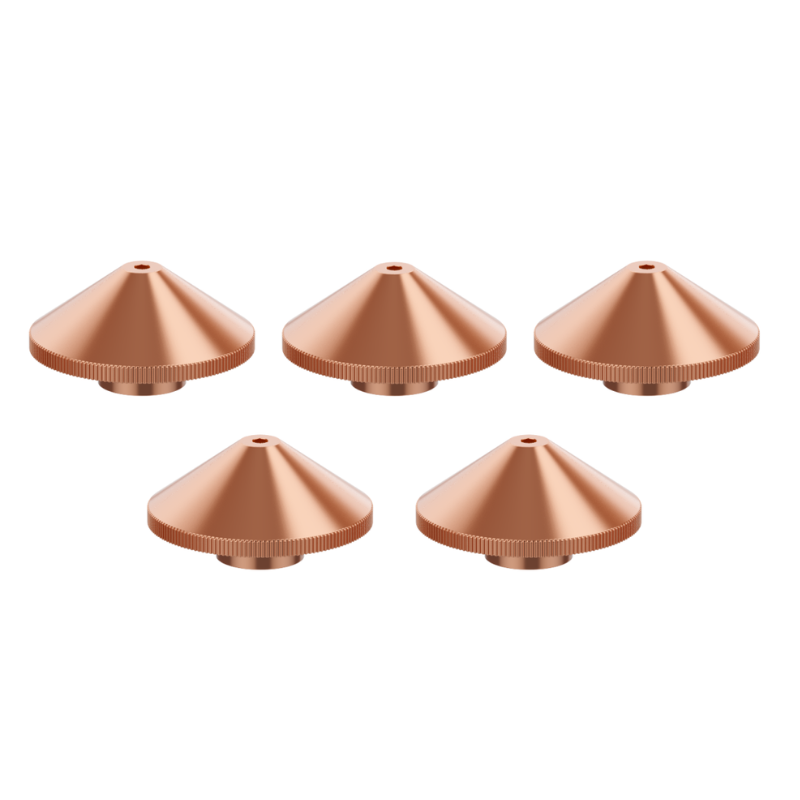

xTool MetalFab Ordinary Cutting Nozzle – 5pcs

The Ordinary Cutting Nozzle is designed for precise, non-contact CNC cutting of a range of metal materials.
The 5-piece set is suitable for applications involving:

• Stainless steel
• Brass
• Aluminum
• Galvanized sheet
• Carbon steel

For materials below 1 mm, xTool states that the ordinary nozzle can operate with 0.6 MPa gas pressure. For thicker stainless steel, brass, and aluminum, higher pressure or the SaveGas™ nozzle may be appropriate depending on the application.

For carbon steel and galvanized sheets 2 mm or thicker, xTool recommends the double-layer nozzle with oxygen.

Key Features
5 replacement nozzles
Non-contact cutting
Designed for precise cutting
Suitable for multiple metal types

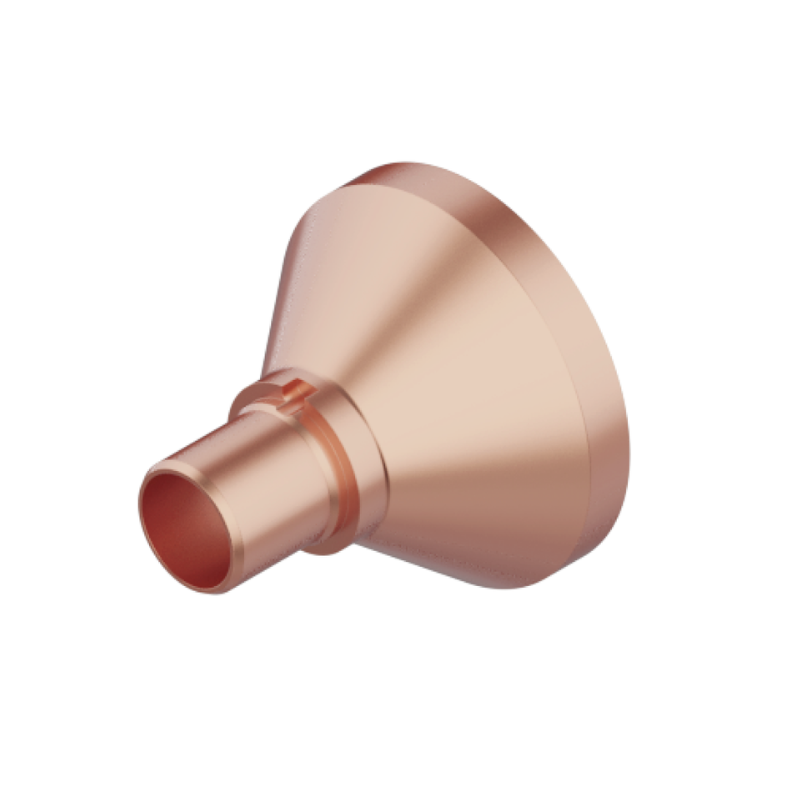

xTool MetalFab CNC Cleaning Nozzle

The xTool MetalFab CNC Cleaning Nozzle is designed for automated CNC laser cleaning applications.
It can be used to remove rust and paint automatically and is installed on the MetalFab CNC cutter.

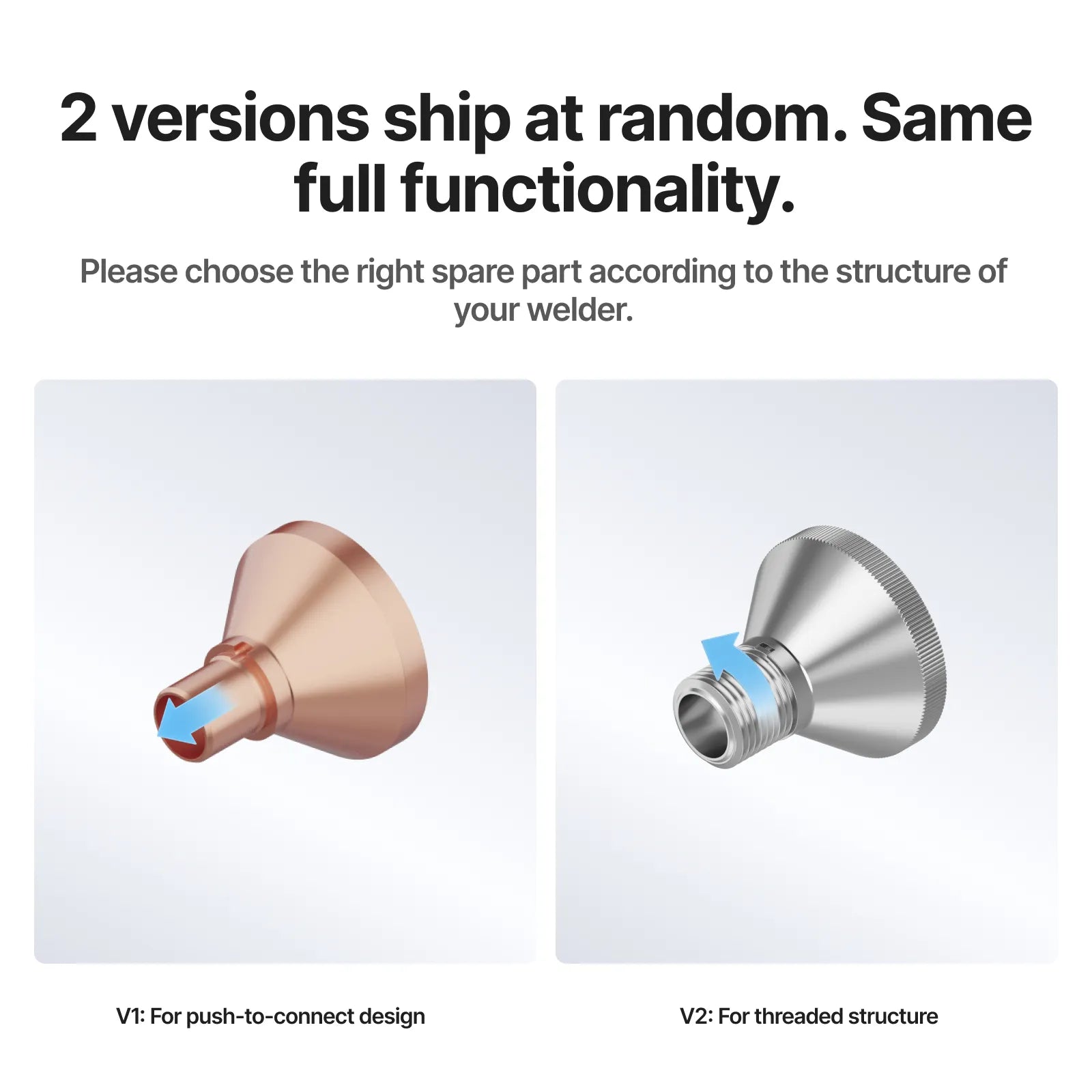

• Available Versions
• Push-to-connect version
• Threaded version

This accessory is intended as a replacement/spare component for the MetalFab CNC cleaning system.

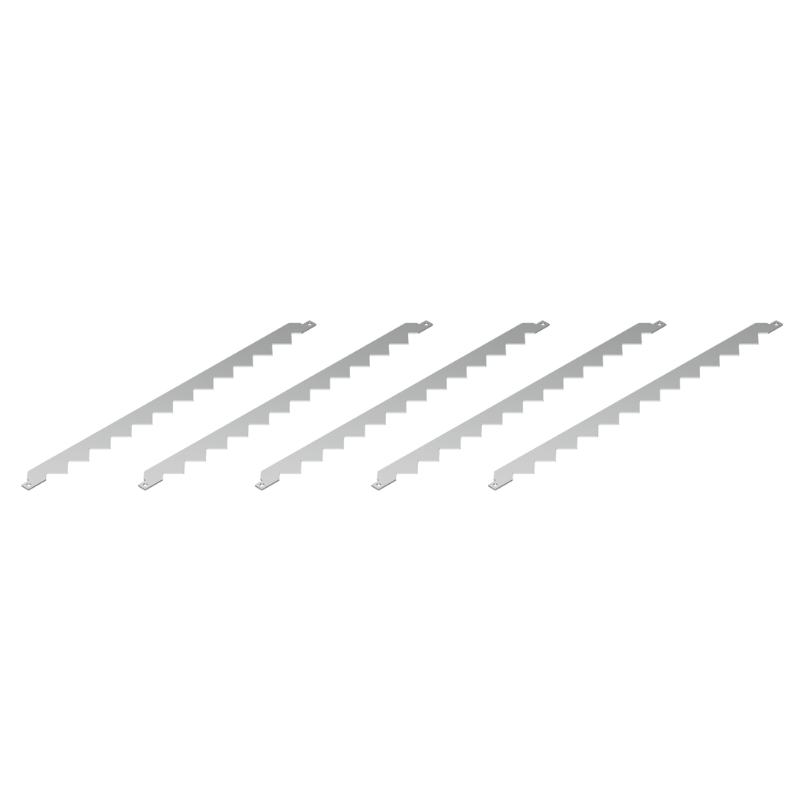

xTool MetalFab Slats – 5pcs

The xTool MetalFab Slats provide additional support for sheet materials during CNC cutting.
The set includes 5 metal slats designed to secure and support sheet material inside the cutting area.

Key Features

• 5 metal slats
• Supports sheet material during cutting
• Helps reduce vibration and waviness
• Particularly useful when cutting thin sheets

For sheets 1 mm or thinner, xTool recommends laying all slats to provide adequate support and help prevent vibration and waviness during cutting.

Choose the Right MetalFab Accessory

Accessory	Main Application	Key Purpose
MaxClean™ 45mm	Laser cleaning	Remove rust & paint
Welding Nozzle Set	Welding / handheld cutting / cleaning	Replacement welding & handheld components
Protection Lens Set	Maintenance	Protect welding optics
SaveGas™ Nozzle Set	CNC cutting	Gas-efficient cutting of thicker materials
Double-Layer Nozzle Set	CNC cutting	Carbon steel & galvanized sheets ≥2 mm
Ordinary Cutting Nozzle	CNC cutting	Precise non-contact cutting
CNC Cleaning Nozzle	CNC cleaning	Automated rust & paint removal
MetalFab Slats	CNC cutting	Support and secure sheet material
