xTool M2 CMYK Inkjet Printing Module
Available on backorder

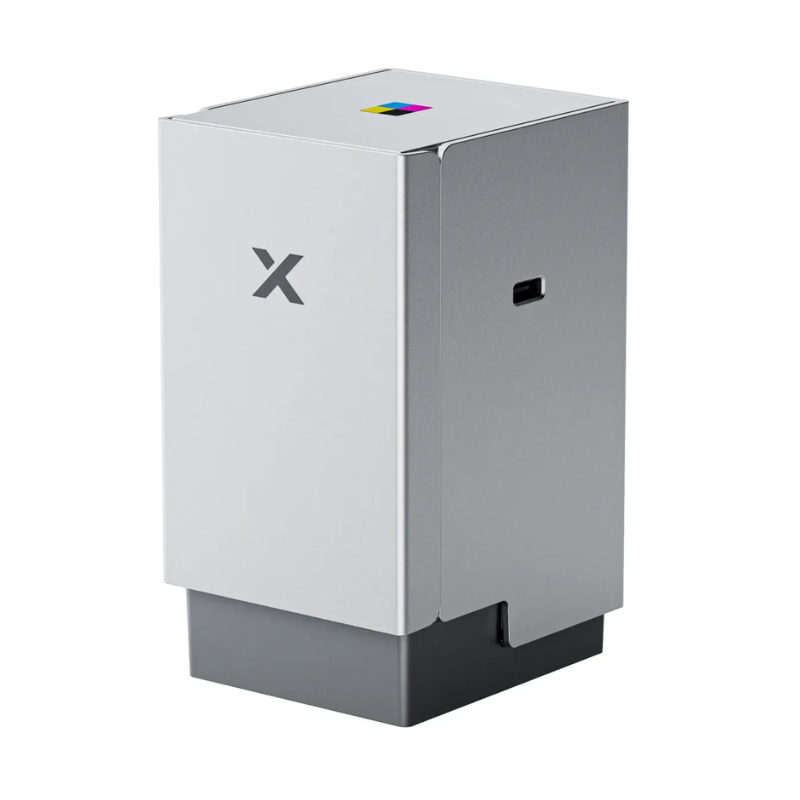

The xTool M2 CMYK Inkjet Printing Module is an optional accessory designed exclusively for the xTool M2 Color Craft Laser Cutter & Engraver. It transforms the M2 into a full-color desktop printer capable of direct CMYK printing, Print-Then-Cut workflows, and printing on materials that conventional desktop printers cannot handle. Combined with the M2’s laser module, it enables users to print vibrant graphics and then automatically cut or engrave them with high precision.
Price range: $166.00 through $284.00
Key Features
- Full CMYK Color Printing
- Uses Cyan, Magenta, Yellow, and Black (CMYK) water-based dye ink for vibrant, full-color output.
- Print-Then-Cut Workflow
- Seamlessly combines color printing with laser cutting or engraving for stickers, labels, signage, packaging, and crafts.
- High Print Resolution
- Up to 1200 DPI for sharp images, detailed graphics, and crisp text.
- Large Printable Area
- Maximum print area: 391.5 × 290 mm, supporting projects larger than standard A4 paper.
- Automatic Bottom Cap System
- Automatically removes and reinstalls the protective bottom cap during operation to help prevent nozzle drying.
- High-Speed Printing
- Maximum print speed of 150 mm/s.
- Automatic Calibration
- Built-in calibration ensures accurate alignment between printed graphics and laser cutting.
- Plug-and-Play Installation
- Magnetic quick-swap module designed specifically for the xTool M2.
- Compatible with xTool Creative Space
- Supports printing, laser engraving, and Print-Then-Cut projects within one software environment.
Compatible Materials
The CMYK Inkjet Module is designed for direct printing on a wide variety of light-colored materials, including:
- Printing paper
- Photo paper
- Adhesive vinyl
- Sticker paper
- Labels
- Basswood plywood
- Canvas
- Fabric
- Acrylic (with appropriate primer)
- Wood
- Cardboard
- Leather (treated)
- Craft materials
Best results are achieved on white or light-colored surfaces. Because the module uses CMYK ink only, it cannot print white ink, so dark materials will affect the final printed colors.
| Weight | 2 kg |
|---|---|
| Dimensions | 31 × 16 × 24 cm |
| Variant | xTool CMYK Ink Module V1.0, xTool CMYK Ink Cartridge V1.0 |
| Specification | Details |
|---|
| Module Type | CMYK Inkjet Printing Module |
| Ink Colors | Cyan, Magenta, Yellow, Black |
| Ink Type | Water-based Dye Ink |
| Print Resolution | Up to 1200 DPI |
| Droplet Size | 6 pL (CMY), 9 pL (Black) |
| Ink Capacity | 40 mL |
| Standard Ink Yield | Approximately 400 pages (ISO/IEC 24712, 5% coverage) |
| Maximum Print Area | 391.5 × 290 mm |
| Maximum Material Thickness | 26 mm |
| Maximum Print Speed | 150 mm/s |
| Position Accuracy (Print + Cut) | ≤ 0.3 mm |
| Input Voltage | 24 V |
| Module Dimensions | 77 × 65 × 114 mm |
| Module Weight | 320 g |
| Compatibility | xTool M2 only |
