xTool M2 20W 455nm Diode Laser Module
Available on backorder
The xTool M2 20W 455nm Diode Laser Module is an optional upgrade for the xTool M2 that significantly increases cutting speed and thickness compared to the standard 10W diode module. It is designed for users who frequently work with wood, leather, paper, dark acrylic, and other organic materials while maintaining high engraving precision.
$1,006.00
Available on backorder

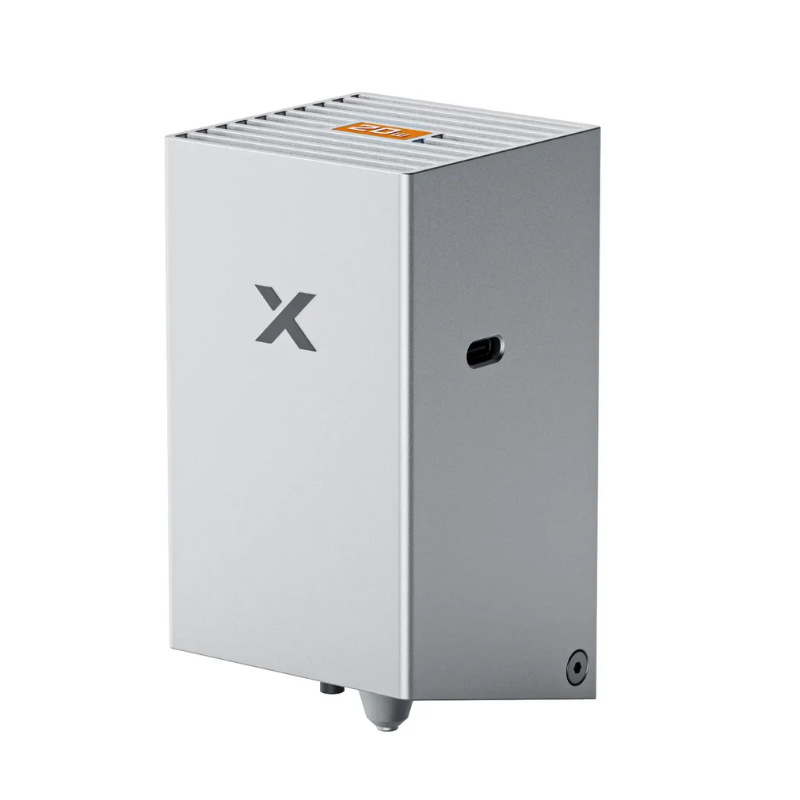

xTool M2 20W 455 nm Diode Laser Module is a replaceable laser module with a power of 20 W for the xTool M2 laser machine. The module is equipped with a blue diode laser and is designed for cutting and engraving wood, acrylic, leather, as well as marking anodized aluminum and coated metals within a working area of 300 × 294 mm.
Key Features
20W Blue Diode Laser
455nm blue diode laser
Maximum optical output: approximately 20W (24W maximum measured output)
Ultra-Fine Laser Spot
Approximately 0.08 × 0.06 mm
Produces detailed engravings, fine text, and intricate graphics.
High-Speed Cutting

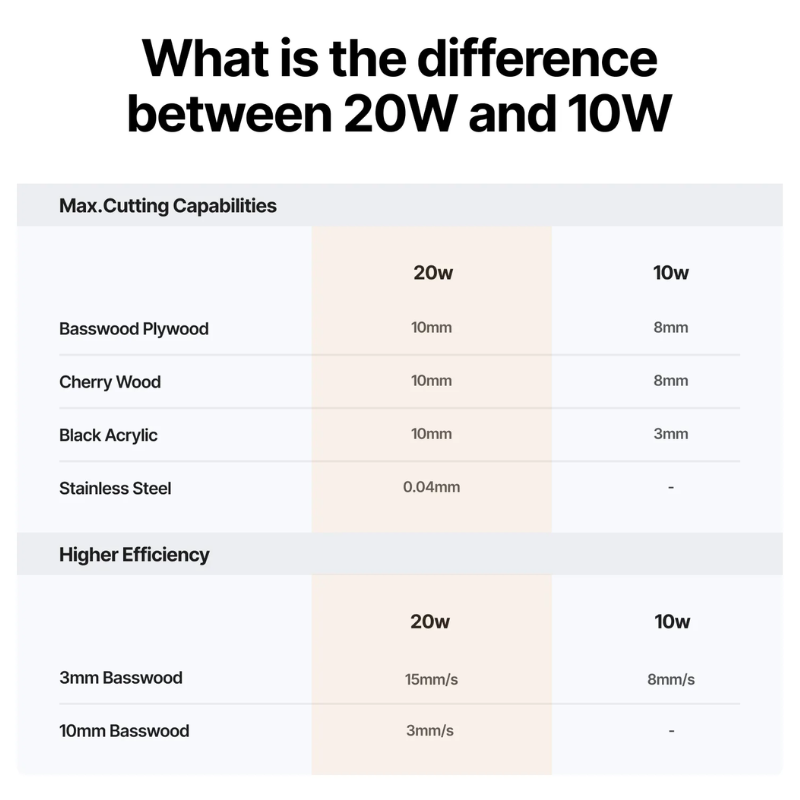

Cuts thicker wood in fewer passes than the standard 10W module.
Plug-and-Play Installation
Designed specifically for the xTool M2.
Quick module replacement with automatic recognition.
Works with xTool Creative Space
Compatible with xTool’s software for Windows and macOS.
Technical Features of xTool M2 20W 455nm Diode Upgrade Laser Module
Blue diode laser 455 nm: wavelength optimized for working with organic and synthetic materials.
Optical power 20 W: allows for through-cutting of plywood, basswood, and black acrylic up to 10 mm thick in one pass.
Focal point 0.06 × 0.08 mm: a fine laser beam ensures high line clarity, positioning accuracy, and detail when engraving complex graphic elements or small details.
Magnetic fixation MagSwap™: removable design is fixed on the moving carriage of the xTool M2 series machine using magnetic mounts and a connection interface, allowing for manual replacement of working modules without the use of tools.
Control via xTool Creative Space: in the proprietary software, power, speed, and processing modes are configured, and layout positioning is performed.
Compatible Materials
Ideal for engraving and cutting:
Basswood
Birch plywood
MDF
Bamboo
Leather
Kraft paper
Cardboard
Felt
Fabric
Rubber
Slate
Anodized aluminum
Stainless steel (engraving with marking spray)
Dark and opaque acrylic
Not suitable for cutting:
Clear acrylic
White acrylic
Transparent plastics
PVC/Vinyl (unsafe due to corrosive fumes)
| Weight | 3.2 kg |
|---|---|
| Dimensions | 35 × 18 × 25 cm |
| Specification | Details |
|---|---|
| Laser Type | Blue Diode Laser |
| Wavelength | 445–455 nm |
| Optical Power | 20W |
| Maximum Laser Output | 24W |
| Laser Spot Size | 0.08 × 0.06 mm |
| Working Temperature | 0–35°C |
| Compatibility | xTool M2 only |
