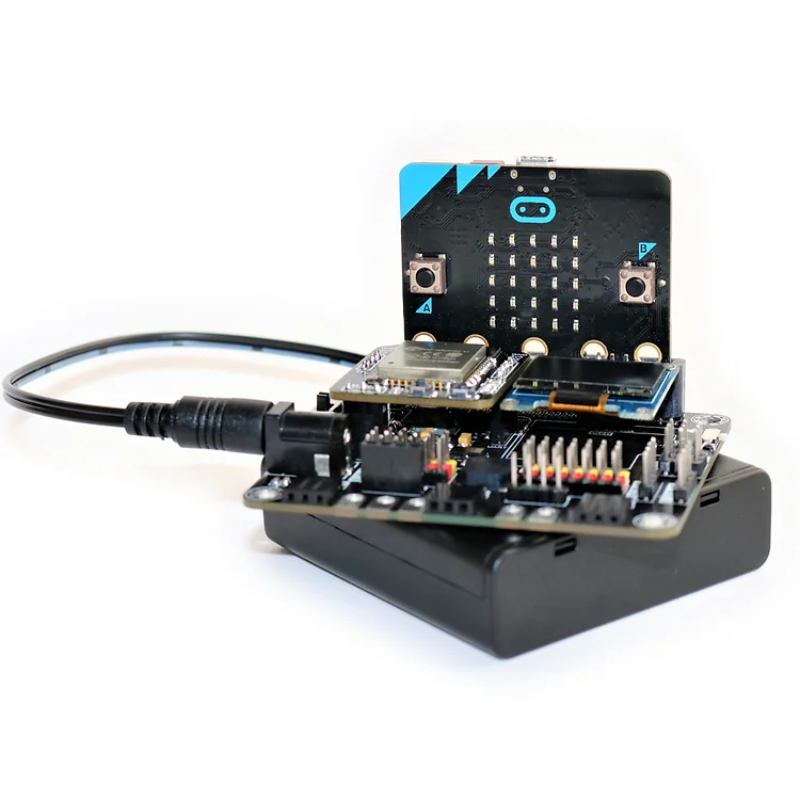

Smarthon IoT:bit-IoT Expansion Board for micro:bit

• The Most powerful IoT chip ESP32 embedded for micro:bit
• Exchangeable wireless modular design (ESP8266, ESP32, BLE)
• Integrated OLED and Onboard buzzer embedded
• Extended I/O port x13, I2C port x2 from mirco:bit with GVS socket
• Extended Servo port x3 from ESP module
• Various types of power supply (USB, 3.7V lithium battery, 6V Normal battery)
• Extra Port: Crocodile Pin, Quick Access Port and 4-Pin Port for different usage

Product size: 75mm X 65mm X 20mm

PCB thinkness: 1.5mm

Hole diameter: 4mm

“Product Features”

“Port Diagram”

———————————————————————————————————————————————————————

Smarthon IoT:bit Starter Go Kit

Package Includes:

• IoT:bit
• Battery
• Holder
• USB
