5W IR Laser Module for P3
Available on backorder

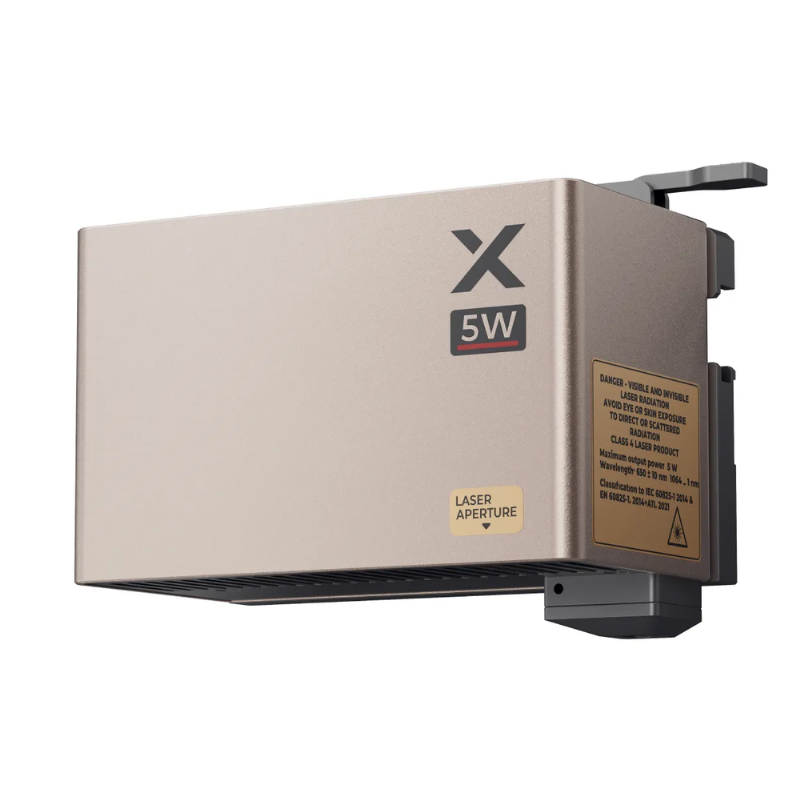

Expand the capabilities of your xTool P3 CO₂ Laser Cutter & Engraver with the genuine xTool 5W IR (Infrared) Laser Module. Designed exclusively for the xTool P3, this interchangeable laser module enables high-speed, high-precision engraving on a wide variety of metals and specialized materials that are difficult or impossible to process with a standard CO₂ laser.
$1,258.00
Available on backorder
Featuring a 1064 nm pulsed infrared laser with 5W output power, the module delivers fine, high-contrast markings on stainless steel, aluminum, brass, gold, silver, titanium, and many engineering plastics. It is ideal for industrial part marking, jewelry customization, personalized gifts, serial numbers, barcodes, QR codes, and premium product branding. The module is powered directly by the xTool P3, requiring no additional power supply, and can be installed or removed in just a few minutes.
Unlike the standard CO₂ laser, the 5W IR Laser Module is optimized for engraving and marking applications only. It does not support material cutting, but offers exceptional marking quality with a maximum engraving speed of 1,000 mm/s, making it an excellent addition for users who need both CO₂ cutting and infrared metal engraving in a single workflow
Key Features
- Genuine xTool accessory designed exclusively for the xTool P3
- 5W Pulsed Infrared Laser for precision metal engraving
- 1064 nm wavelength optimized for metal and plastic marking
- Produces permanent, high-contrast engravings
- Ideal for stainless steel, aluminum, brass, copper, gold, silver, titanium, and selected plastics

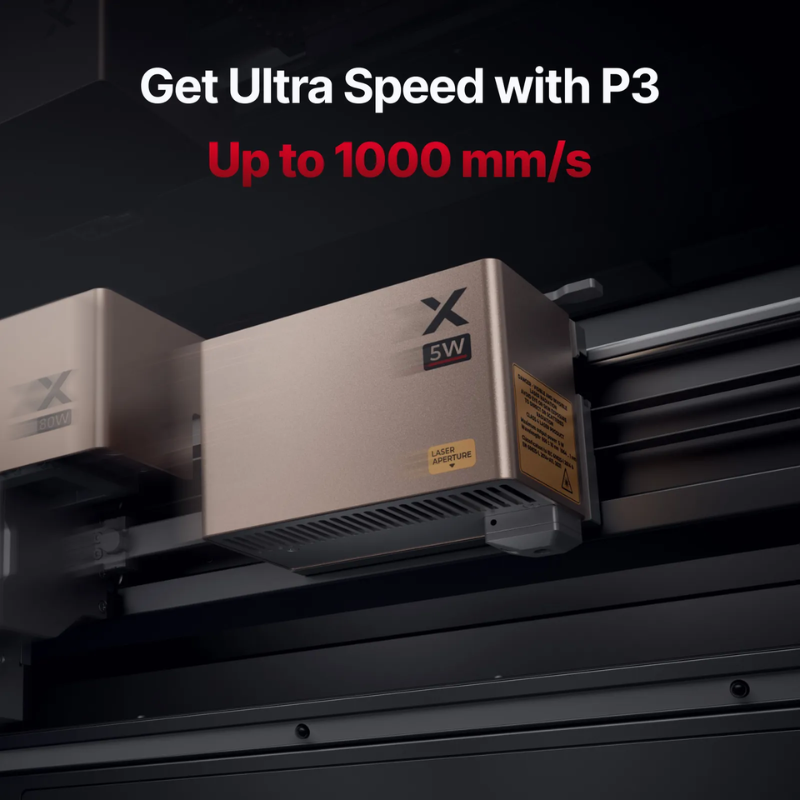

- Maximum engraving speed of 1,000 mm/s
- Large working area of 650 × 426 mm
- Air-cooled design with host-powered operation
- Quick installation and seamless switching between CO₂ and IR laser modules
- Perfect for jewelry, tools, industrial labels, personalized gifts, and product branding
| Weight | 1.5 kg |
|---|---|
| Dimensions | 24 × 18.4 × 16 cm |
Specifications
| Dimension | Data |
|---|---|
| Wavelength | 1064nm±1nm |
| Power | 5W |
| Pulse Width | 4ns |
| Repetition Rate | 25~30KHz |
| Peak Power | 49~65KW |
| Single Pulse Energy | >0.14mJ |
| Focal Length | 49mm |
| Beam Waist | ≥3mm |
| Lifetime Requirement | 8000h |
| Laser Head Dimensions & Weight | 136.5mm*94.5mm*92.5mm 850g |
| Working Area | 650mm*426mm |
| Operating Temperature | 0~35°C |
| Storage Temperature | -10 ~ 60°C |
| Cooling Method | Air Cooling |
| Power Supply | Host Power Supply (Powered by Main Unit) |
| Package Dimensions & Weight | 236mm*184mm*156mm 1.5kg |
