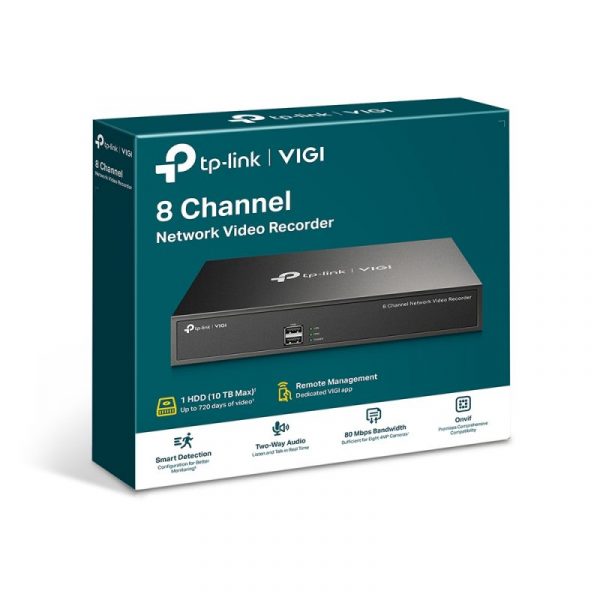

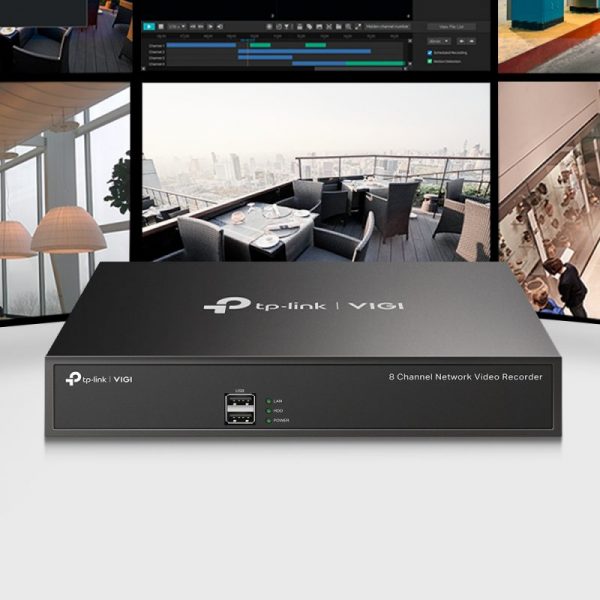

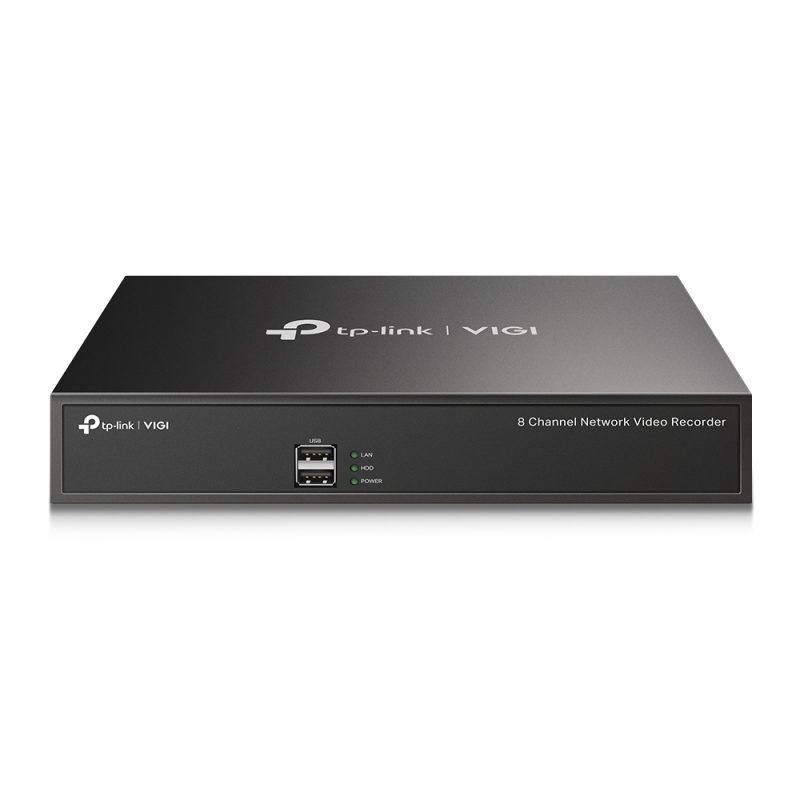

TP-Link VIGI NVR1008 — VIGI 8 Channel Network Video Recorder


Security Never Shuts Down

  • 24/7 Continuous Recording: Automatically stores up to 10 TB of footage from connected cameras to secure your data for quick, convenient access.
  • 8-Channel Real-Time Live View: Sharp image definition up to 5MP and an 8 channel display ensures you capture every detail, from every angle.
  • 4-Channel Simultaneous Playback: Replay the feed from up to 4 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
  • Remote Monitoring: Dedicated VIGI app is developed for remote monitoring, providing ease and convenience.
  • H.264+: Without using any extra bandwidth, your camera transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
  • Onvif Ensure Compatibility: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.

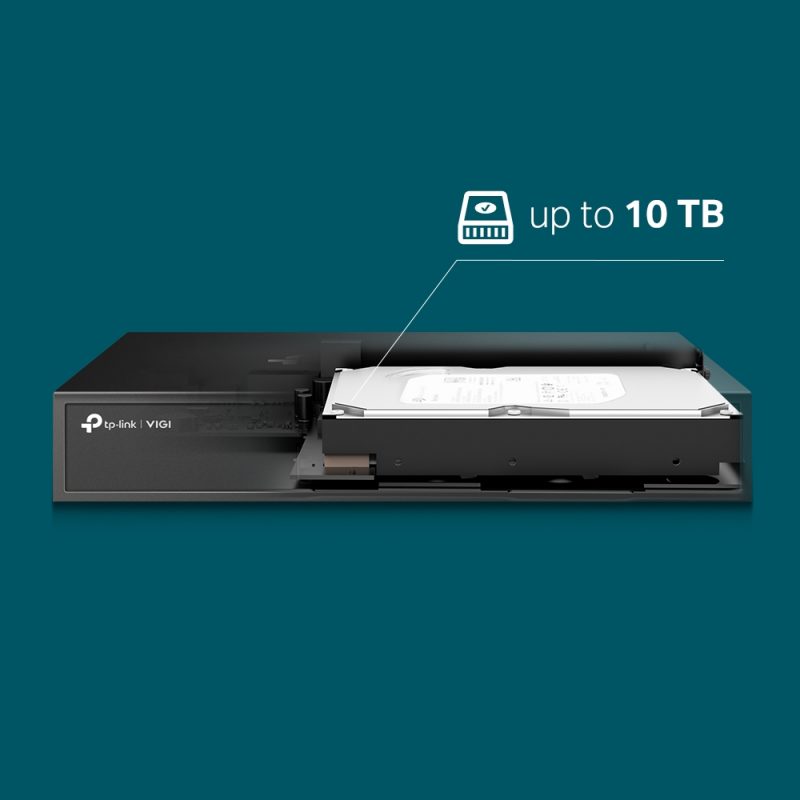

  • 1 HDD Interface (up to 10 TB): Stores up to 10 TB (720 days of video) on a SATA hard drive, keeping your data storage secured locally.
  • Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.
  • 80 Mbps Video Access Bandwidth: High video access bandwidth ensures your NVR connects more cameras with high resolution. Based on laboratory testing using VIGI cameras, VIGI NVR can connect up to eight 4MP cameras.
Category: Tag:
NETWORK
Protocol TCP/IP, DHCP, DNS, NTP, UPnP
Incoming Bandwith 80 Mbps
Outgoing Bandwidth 60 Mbps
GENERAL
Operating Temperature -10–55 °C
Chassis 1U Chassis
Dimensions( H X W X D ) 246.2 mm*148.2 mm*42.6 mm
Weight 578.5 g
External Power Supply 12V DC, no more than 18 W
Power Consumption 4.25 W (without disk)
13.10 W (with disk)
VIDEO/IMAGE
Video Input 8-Channel IP Video Input, up to 5 MP Resolution
Video Output Recording Resolution: 5 MP/ 4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
HDMI/VGA Output Resolution: 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1680 × 1050/60Hz, 1440 × 900/60Hz
DECODING
Decoding Format H.264+/H.264
Live View/Playback Resolution 5 MP/ 4 MP/3 MP/1080p/UXGA/
720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback 4 Channel†
Capability 1-ch @ 5MP, 2-ch @ 2MP, 4-ch @ 720p
HARD DISK
SATA 1 SATA Interface
Capacity Up to 10 TB
INTERFACES
Network Interface 1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
USB Interface 2 × USB 2.0
